Fiber Optic Cable M4, 2m Cable, 1.0 mm Fiber Diameter – FT-420-10
DESCRIPTION

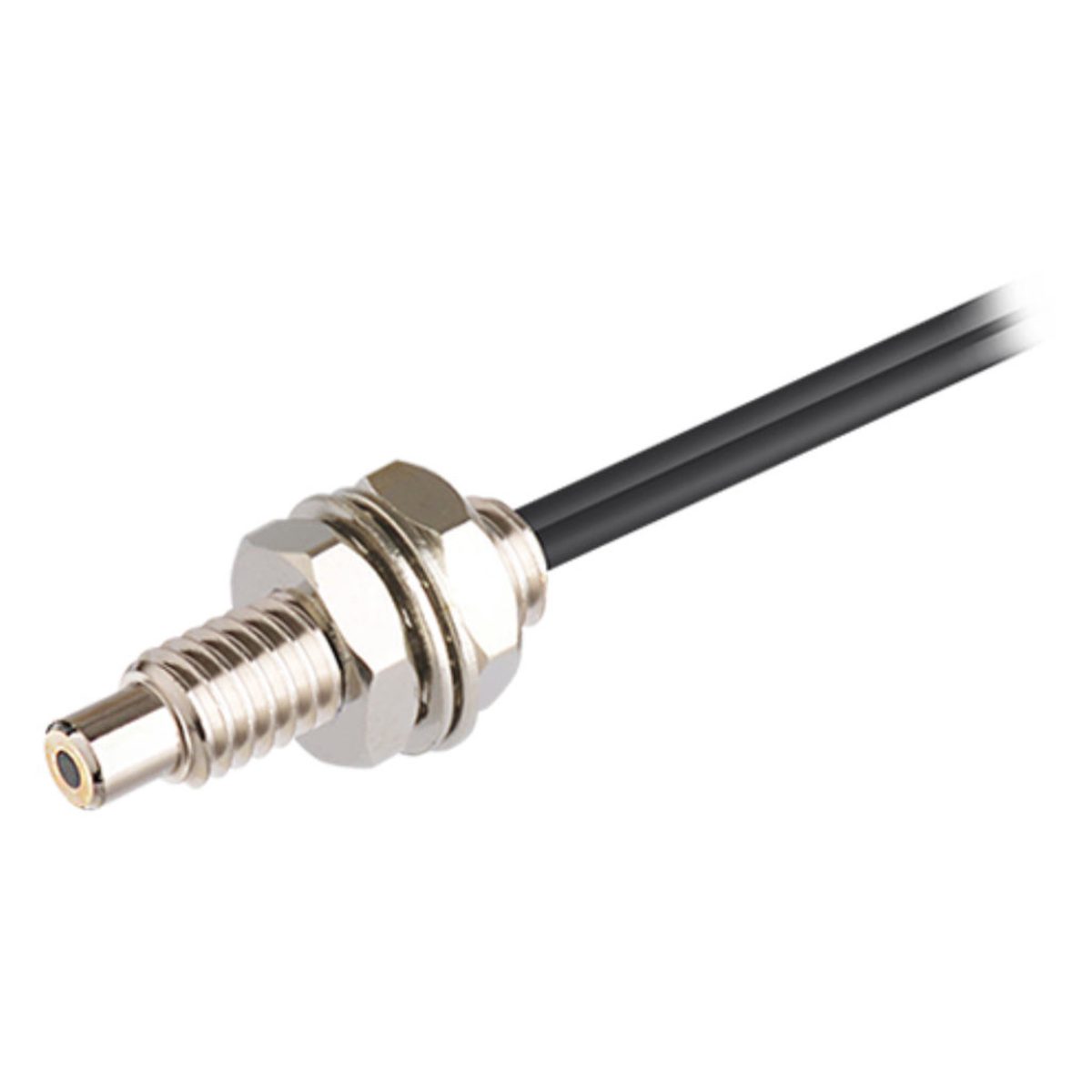

Autonics Standard type Fiber Optic Cable, FT-420-10
Through-beam type, Bolt type, Free cut
The Autonics fiber optic sensor FT-420-10 is used to provide accurate detection of objects in various applications. For flexible installation in a variety of environments, this sensor is available in through-beam sensing method, thread head type, and standard cable type.
As a quick report, this fiber optic sensors provides:
- Standard type (bolt type)
- R25 Allowable bend radius
- 2m Cable length
- 500mm Sensing distance
- Ø1mm Min. sensing target
- Through-beam sensing type
- Thread head type
Body
This Autonics fiber optic sensor’s case is made of plastic.
Connection
The Autonics fiber optic sensor FT-420-10 features standard cable type. This fiber 1.0 mm in diameter and 2 meters in cable length, and the hood diameter for this sensor is Ø4 mm (M4).
Sensing specifications
This fiber optic sensor’s sensing type is through-beam. The maximum distance that this sensor can detect its called sensing distance is 500 mm and minimum sensing target for FT-420-10 sensor is Ø1 mm.
Temperature
There are limitations in temperature in which FT-420-10 fiber optic sensor is used:
- Environment_Ambient temperature: -40 to 70 ¡æ
Industries / applications
- Wafer Baking Equipment
- Manufacturing Process
Want to know how this sensor acts? Check our article to get the full report on Fiber Optic sensor working principles.
