Digital Pressure Sensor 0.0 to -101.3kPa, PNP open collector & 1 – 5 VDC Output – PSAN-V01CPV-RC1/8

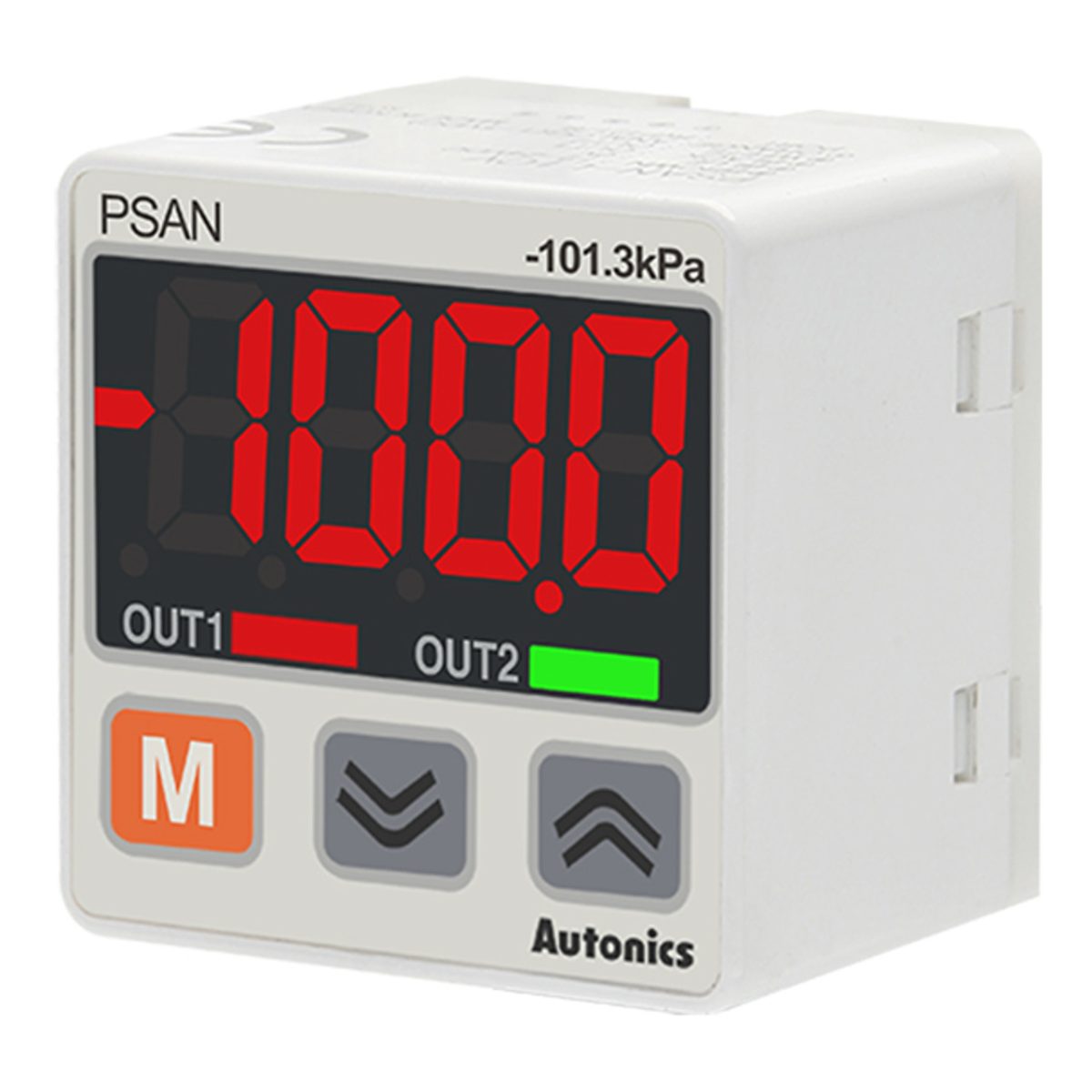

Autonics Display Type Pressure Sensor – PSAN-V01CPV-RC1/8

Connector type, Voltage output, Gauge pressure, Rear fitting

The Autonics PSN-V01CPV-RC1/8 pressure sensor is a reliable and accurate device designed for industrial applications. It features a rated pressure range of 0.0 to -101.3kPa, a current consumption of ≤ 50 mA, and a response time of 2.5, 5, 100, 500, 1000 ms. This sensor is also equipped with an IP40 rating for protection against dust and water ingress, making it suitable for use in harsh environments. Additionally, it has an allowable voltage range of 90 to 110% of rated voltage.

As a quick report, this pressure sensor provides:

• Pneumatic type (gas)

• Back Port fitting

• 7 Segment LED, 4 ½ digit Display

• Applicable fluid: Air, Non-corrosive gas

• Negative pressure

• IP40 (IEC standard)

• 12-24VDC ±10% (ripple P-P: max. 10%) Power supply

• PNP open collector output

• Max. pressure: Rated pressure × 2

Body

This Autonics pressure sensor’s front and back case are made of Polycarbonate, and its pressure port is made of Nickel Plated Brass.

The PSAN-V01CPV-RC1/8 features IP40 ingress protection.

Connection

The Autonics sensor PSAN-V01CPV-RC1/8 features connector type connection.

Control output

The PSAN-V01CPV-RC1/8 features PNP open collector control output. PNP stands for Positive-Negative-Positive transistors.

Temperature

There are limitations in temperature and humidity in which PSAN-V01CPV-RC1/8 pressure sensor is used:

• Storage temperature: -20 … 60°C

• Storage humidity: 30 to 80%RH

• Ambient temperature: -10 … 50°C

• Ambient humidity: 30 to 80%RH

Environment resistance is rated at no freezing or condensation.

Industries / applications

• Mobile LCD Manufacturing

• Potato chip manufacturing and packaging process

• Potato Washing Conveyors

• Confirm Reference Pressure in Pipes

• Semiconductor Parts Manufacturing

• Container Transport Conveyors
