Cylindrical Photoelectric Sensor 5 m – BRQM5M-TDTA-P
DESCRIPTION

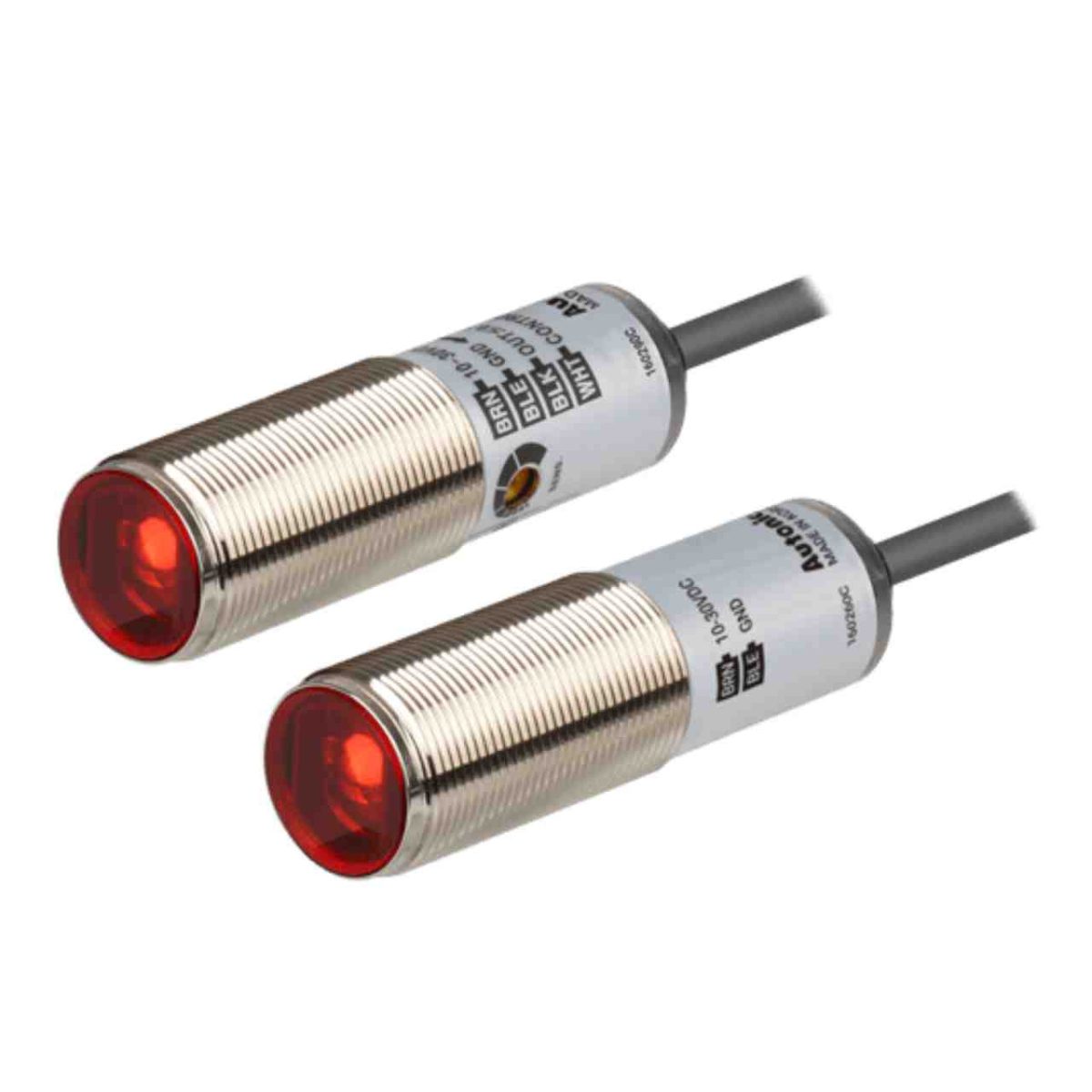

Autonics Cylindrical Photoelectric Sensor – BRQM5M-TDTA-P
PNP open collector, Cable type connection, Sensitivity adjuster
The Autonics photoelectric sensor BRQM5M-TDTA-P is Through-beam sensing type, comes in a cylindrical shape, sensing distance of 5m, Response time of Max. 1ms and cylindrical installation. The standard cylindrical photo sensor can be used in diverse applications requiring non-contact detection of Opaque material.
As a quick report, this photoelectric sensor provides:
- Through-beam sensing type
- 5m sensing distance
- Opaque material sensing target
- Red LED (660nm) Light source
- 10-30VDC ±10% (ripple P-P: max. 10%) power supply
- PNP open collector control output
- Light ON/Dark ON mode selectable by control wire
- IP67 ingress protection structure according to IEC standards
Body
This Autonics photoelectric sensor’s case is made of brass, Ni-plate, its Lens, Lens cover are made of polymethyl methacrylate acrylic.
The BRQM5M-TDTA-P features IP67 ingress protection.
Connection
The Autonics sensor BRQM5M-TDTA-P features standard cable type connection. This cable covers the sensor’s 4 wires. It is Ø4mm in diameter and 2 meters in length.
Sensing specifications
The sensing target for this photoelectric sensor is Opaque material. The maximum distance that this sensor can detect its standard sensing target is 5m. This so-called sensing distance differs from one sensing target to another, based on their material.
Control output
The BRQM5M-TDTA-P features PNP open collector control output. PNP stands for Positive-Negative-Positive transistors.
Temperature
There are limitations in temperature and humidity in which BRQM5M-TDTA-P photoelectric sensor is used:
- Storage temperature: -30 … 70°C
- Storage humidity: 35 to 85%RH
- Ambient temperature: -25 … 60°C
- Ambient humidity: 35 to 85%RH
Environment resistance is rated at no freezing or condensation.
