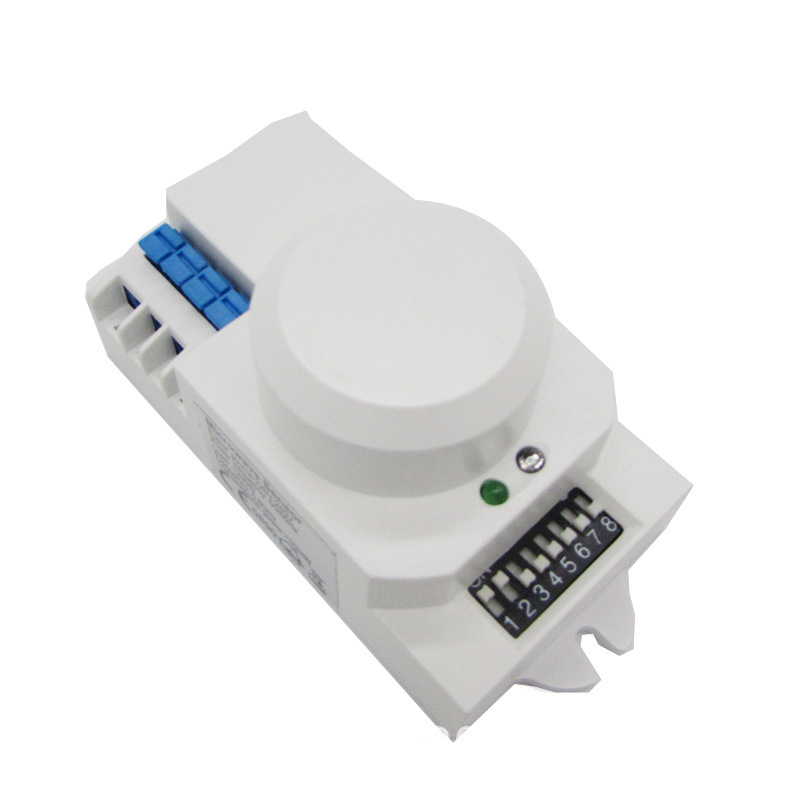

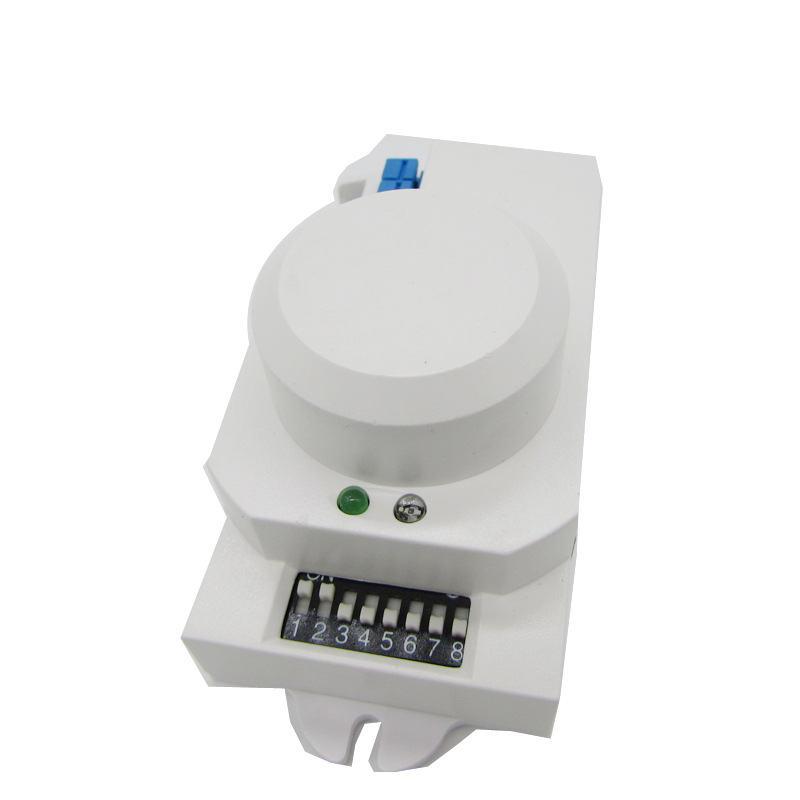

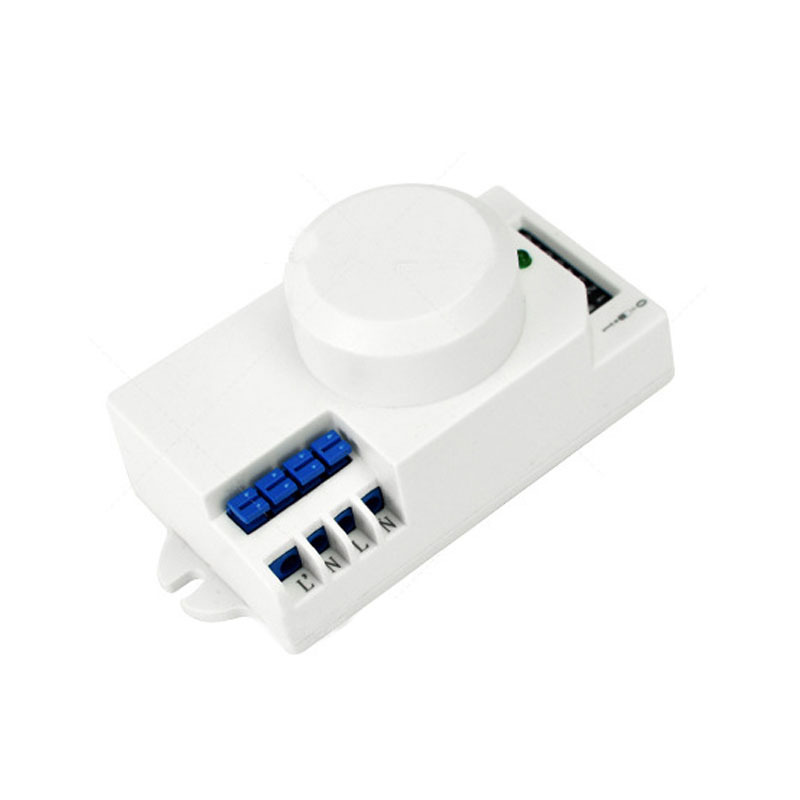

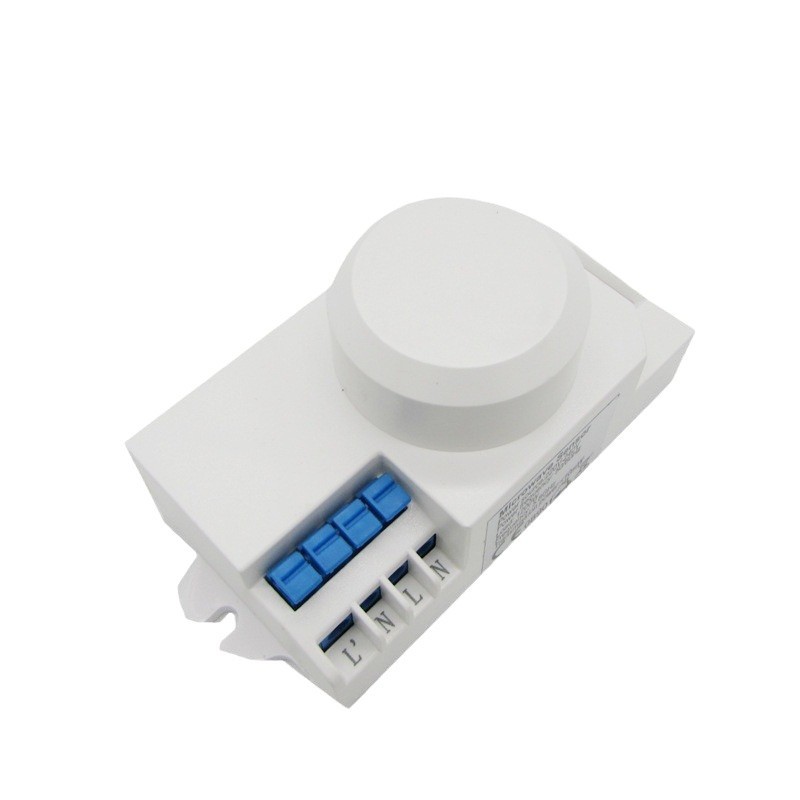

Classic Design ON / OFF Sensor Microwave Switch For Ceiling Light
Product Specification
| Place of Origin | China | Packaging Details | Packed in Bubble Bag, Reinforced With Paper Flat, Then Packed With Outer Carton |
| Color | White | Programming | DIP Switch |
| Model Number | TR-D04 | Supply Ability | 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days |
| Certification | TUV CE RED | Brand Name | TR-Sensor |
| Payment Terms | D/A, D/P, T/T | Function | ON/OFF |
| Input | 220-240VAC | Price | Negotiable |
| Delivery Time | Standard Models Within 2 Weeks | Minimum Order Quantity | 100pcs/CTN |
DESCRIPTION
Classic Design Best Seller ON/OFF Sensor Microwave Switch For Ceiling Light
Features
- Automatically turn ON and OFF the sensor
- Widely applicated options for Detection Area, Daylight Threshold and Holdtime
- Compact sized particularly suitable for Ceiling lights or Bulkhead
- Easy Installation, 5 Years Warranty
Parameter Table
| Operating Voltage | 220-240VAC,50Hz/60Hz |
| Switching Capacity | Max.400W Control gear; Max.800W Incandescent lamp |
| Microwave Frequency | 5.8GHz±75MHz |
| Stand-by power | ≤0.5W |
| Control Method | ON/OFF |
| Programming | DIP Switches |
| Detection Angle | 150° Without Glass Cover |
| Detection Range | Max.6m/19.68ft |
| Mounting Height | Max.ø12m/39.37ft |
| Detection Area | 10%/50%/75%/100% |
| Hold Time | 5s/90s/5min/15min |
| Daylight Threshold | 2Lux/10Lux/50Lux/Disable |
| IP Rating | IP20 |
| Operating Temperature | -20°C~+55°C |
| Warranty | 5 Years |
