Absolute Rotary Encoder 50 mm Diameter, Parallel NPN Open Collector – EPM50S8-1013-B-PN-24

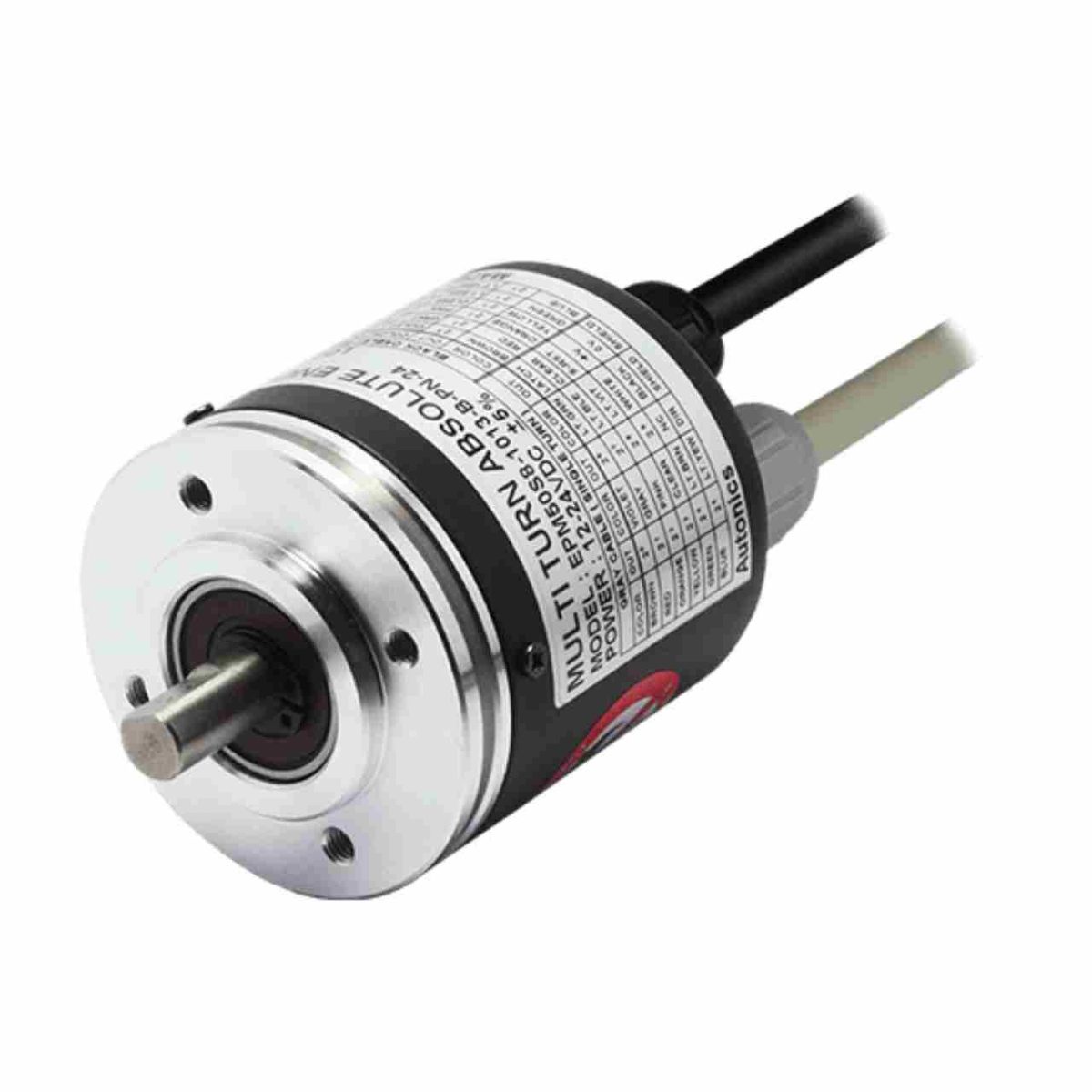

Autonics 50 mm Diameter Absolute Multi-Turn Rotary Encoder – EPM50S8-1013-B-PN-24

Axial cable type, Ø8mm Shaft outer diameter, IP64

The Autonics absolute multi-turn rotary encoder EPM50S8-1013-B-PN-24 has a 50 mm diameter body and it helps to install it in application with precise measurement. The starting torque is 70gf.cm. The maximum allowable revolution for this item is 3000 rpm. Maximum response frequency is 50 kHz. The resolution for Single-Turn is 1024-division and for Multi-Turn is 8192-revolution  that gives a great output result for this product. The axial cable type connection in this encoder makes it possible for operators to install it for most standard applications.

As a quick report, this absolute multi-turn rotary encoder provides:

• Ø8 mm Shaft outer diameter

• Max. 70gf.cm (max. 0.0069N.m) Starting torque

• Resolution: Single-Turn: 1024-division, Multi-Turn: 8192-revolution

• Ø 50 mm housing absolute rotary encoder

• Binary Code Output


• Parallel NPN open collector Control output

• 12-24VDC Power supply

• Axial cable type Connection

• IP64 protection structure (IEC standard)

Connection

The Autonics incremental encoder EPM50S8-1013-B-PN-24 features axial cable type connection. This cable is 6 mm in diameter and 2 meters in length.

Control output

The EPM50S8-1013-B-PN-24 features Parallel NPN open collector control output.

Temperature

There are limitations in temperature and humidity in which EPM50S8-1013-B-PN-24 encoder is used:

• Storage temperature: -25 … 85°C

• Storage humidity: 35 to 90%RH

• Ambient temperature: -10 … 70°C

• Ambient humidity: 35 to 85%RH

Environment resistance is rated at no freezing or condensation.

Industries / applications

• Potato chip manufacturing and packaging process

• Parking Tower Entry/Exit
