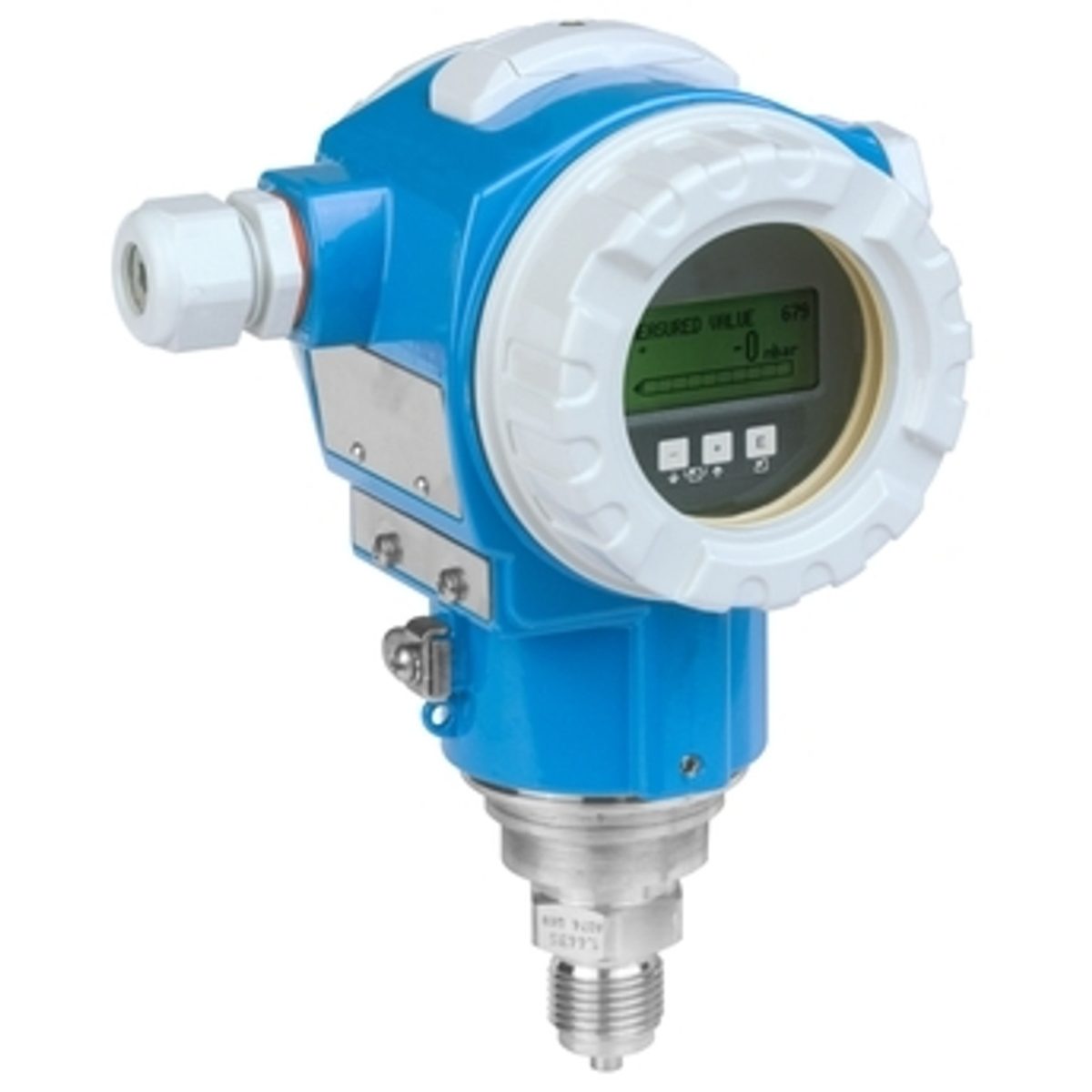

Absolute and gauge pressure Cerabar PMP71 SERIES
DESCRIPTION
Application
The Cerabar PMP71 is a digital pressure transmitter featuring a metallic membrane, ideal for various process applications including pressure, level, volume, or mass measurement in both liquids and gases. It is specifically engineered for high-pressure environments, supporting applications up to 700 bar. The device offers a Quick Setup feature, allowing for freely adjustable measuring ranges without requiring specific pressure inputs. It is designed in accordance with IEC 61508 standards, making it suitable for use in SIL2/3 safety systems, and it comes with a MID Parts Certificate, making it appropriate for custody transfer applications.
The transmitter is housed in a robust two-chamber aluminum or 316L stainless steel casing.
Available process connections include thread and flange options.
It operates within a process temperature range of -40 to +125°C (-40 to +257°F).
Measuring ranges span from -1/0 up to 700 bar (-15/0 up to +10,500 psi).
The device offers high accuracy, with a standard of ±0.05%, and a “Platinum” accuracy option of ±0.025%.
It also comes with international explosion protection certifications, WHG overfill prevention, hygienic and marine approvals, and SIL compliance.
Benefits
- Delivers exceptional accuracy, reproducibility, and long-term stability.
- Ensures maximum safety with a gas-tight feedthrough, capable of supporting SIL2/3 applications, certified to IEC 61508 standards.
- Features an easy, menu-guided setup process via a local display, supporting 4 to 20 mA with HART, PROFIBUS PA, and FOUNDATION Fieldbus communication protocols.
- Includes the HistoROM data management concept, facilitating quick and straightforward commissioning, maintenance, and diagnostics.
- The device is overload-resistant and continuously monitors functionality from the measuring cell to the electronics.
- Available with pre-mounted manifolds that are fully tested for leaks, ensuring a perfect fit.
- Offers seamless and independent system integration through HART, PROFIBUS PA, or FOUNDATION Fieldbus.
