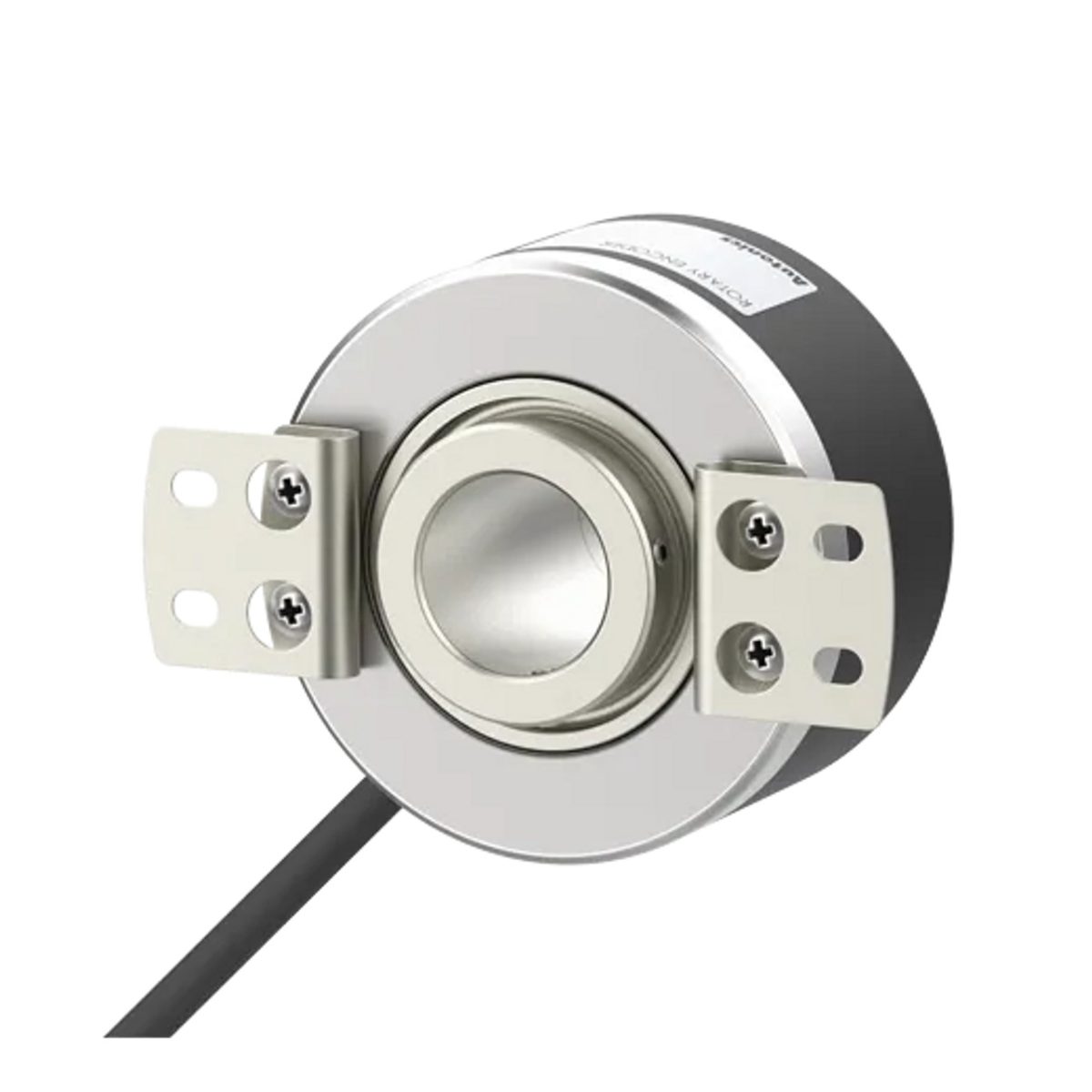

60 mm Incremental Rotary Encoders (Hollow Shaft Type) E60H Series
DESCRIPTION
Product Overview
The E60H series incremental rotary encoders are designed with Ø60 mm housings and Ø20 mm through hollow shafts, making them ideal for a wide range of industrial applications. These encoders are engineered to deliver precise measurements of angle, position, revolution, speed, acceleration, and distance. The series offers a variety of control output options to meet diverse application requirements.
Key Features
- Robust Housing and Shaft: The E60H series encoders feature a durable 60 mm housing and a 20 mm hollow shaft, ensuring reliability in demanding environments.
- Accurate Measurement: Capable of measuring angle, position, revolution, speed, acceleration, and distance with high precision.
- Versatile Resolution Options: Available with resolutions up to 8192 pulses per revolution, offering flexibility for different applications.
- Multiple Control Outputs: Choose from totem pole, NPN open collector, voltage output, or line driver output to best suit your system’s needs.
- Reliable Power Supply: Operates with a power supply of 5 VDC ± 5% or 12-24 VDC ± 5%, with minimal ripple and noise.
- Durability and Protection: Engineered to withstand harsh conditions with features like IP50 protection, resistance to vibration, and shock endurance up to 100 G.
- Compact and Lightweight: Despite its robust features, the encoder remains compact and lightweight, facilitating easy installation and integration.
Additional Accessories
Connector Cable:For enhanced connectivity, optional connector cables are available: CID6S-¡õ and CID9S-¡õ.
Ordering Information
To order the specific model that fits your needs, please refer to the following options:
- Resolution Options: Models are available with resolutions of 100, 1024, 5000, or 8192 pulses per revolution.
- Output Phases: Available in A, B, Z or A, A, B, B, Z, Z phase outputs depending on your application.
- Control Output Types:
- T: Totem pole output
- N: NPN open collector output
- V: Voltage output
- L: Line driver output
- Power Supply Options: Choose between 5 VDC ±5% or 12-24 VDC ±5%.
- Connection Types: Select from radial cable type or radial cable connector type to suit your installation needs.
