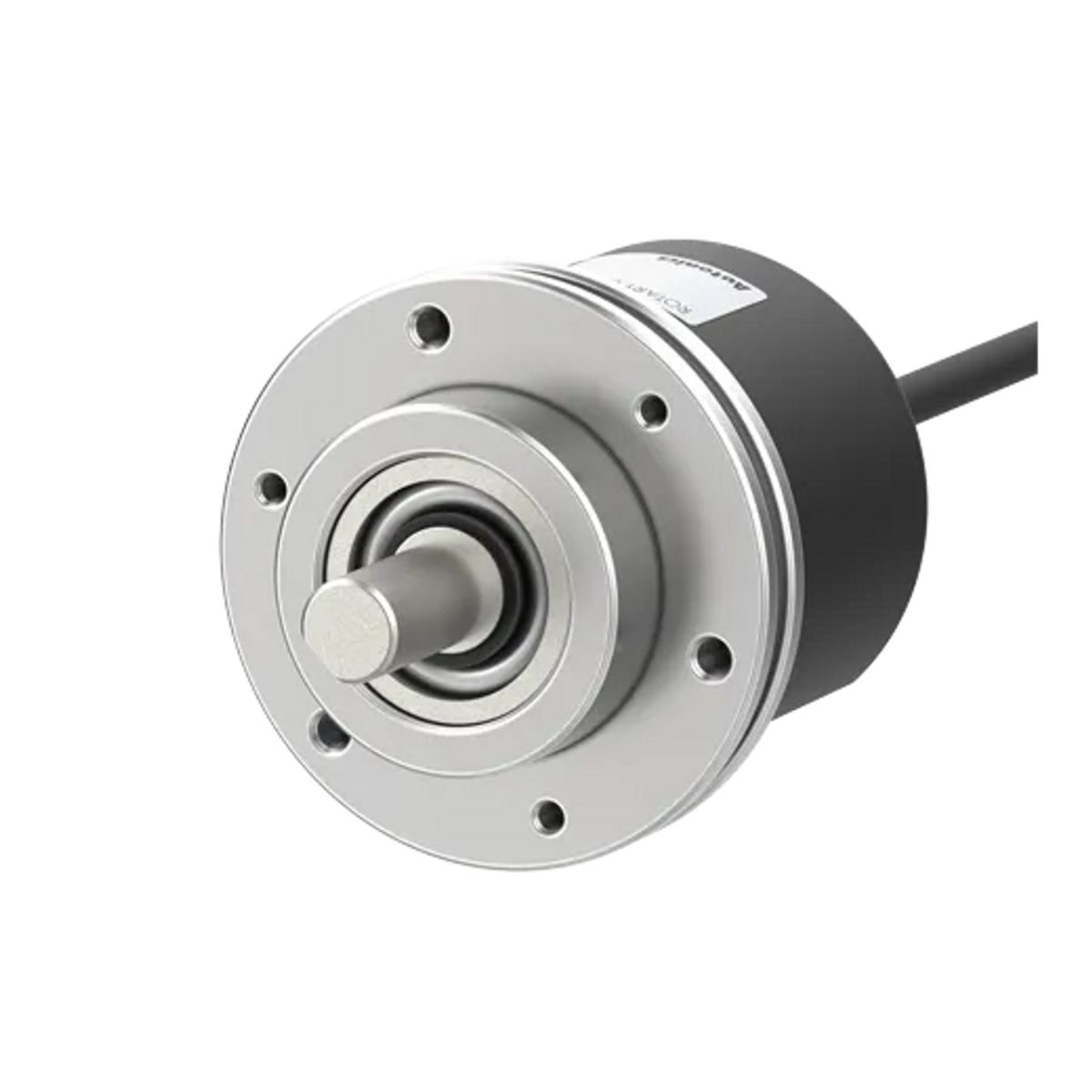

58 mm Incremental Rotary Encoders (Clamping Shaft Type) E58SC Series
DESCRIPTION
Product Overview
The E58SC series clamping shaft type incremental rotary encoders are designed for precision measurement tasks in various industrial applications. With a robust Ø58 mm flange, these encoders accurately measure angle, position, revolution, speed, acceleration, and distance. They are available in multiple connection types, including cable, cable connector, and axial/radial connectors, to suit diverse installation needs. The E58SC series also offers a range of control output options, ensuring compatibility with different control systems.
Key Features
- Ø 58 mm Flange: Compact and durable design suitable for various industrial environments.
- Precision Measurement: Accurately measures angle, position, revolution, speed, acceleration, and distance.
- Multiple Connection Types: Available in cable type, cable connector type, and axial/radial connector types for versatile installation.
- Control Output Options: Various output options including Totem pole, NPN open collector, voltage output, and line driver output.
- High Resolution: Offers resolutions from 1 to 8000 pulses per revolution for precise control.
- Power Supply Options: Compatible with 5 VDC ± 5% or 12 – 24 VDC ± 5% power supplies.
- Robust Construction: Designed to withstand harsh conditions with features like shock resistance up to 75 G and vibration resistance across multiple axes.
- Wide Operating Range: Operates effectively in temperatures from -10 to 70 ¡æ and humidity levels from 35% to 85% RH.
Connection Specifications
- Cable Specifications: Ø 5 mm, 5-wire shielded cable (8-wire for line driver output) with options for 2 m or 250 mm lengths.
- Wire Specifications: AWG24 (0.08 mm, 40-core) with an insulator diameter of Ø 1 mm.
- Connector Specifications: M17 6-pin socket type for Totem pole, NPN open collector, and voltage output; M17 9-pin socket type for line driver output.
Mechanical Characteristics
- Starting Torque: ≤ 0.004 N m for Shaft Clamping type.
- Inertia Moment: ≤ 15 g·cm² for enhanced stability during operations.
- Allowable Shaft Load: Radial load capacity of ≤ 10 kgf and thrust load capacity of ≤ 2.5 kgf.
- Unit Weight: Varies based on connection type, ranging from approximately 200 g to 420 g.
Additional Components
- Sold Separately: Connector cables (CID6S-¡õ, CID9S-¡õ) are available for purchase to complement the E58SC series encoders.
