10m Mounting Height 12Vdc Dry Contact Infrared PIR Motion Sensor Detector IP20
PRODUCT DETAILS
| Input Voltage | 12Vdc/24Vdc | Working Current | 20mA MAX. |
|---|---|---|---|
| Stand-by Power | ≤0.5W | Function | NO/NC Dry Contact (Factory Setting Is NO Dry Contact) |
| Detecting Area (radius) | ≥4m | Max. Mounting Height | 3m |
| Working Temperature | 0℃~35℃ | Cut Size | Φ65-70mm |
| Highlight |
8m Infrared PIR Motion Sensor12Vdc Infrared PIR Motion SensorIP20 Infrared PIR Motion Sensor |
||
DESCRIPTION
PRODUCT DESCRIPTION
10m mounting height 12Vdc dry contact infrared pir motion sensor detector IP20
1. Features
1) PIR motion detection
2) Accurate NO/NC dry contact output
3) Daylight sensor detection is available

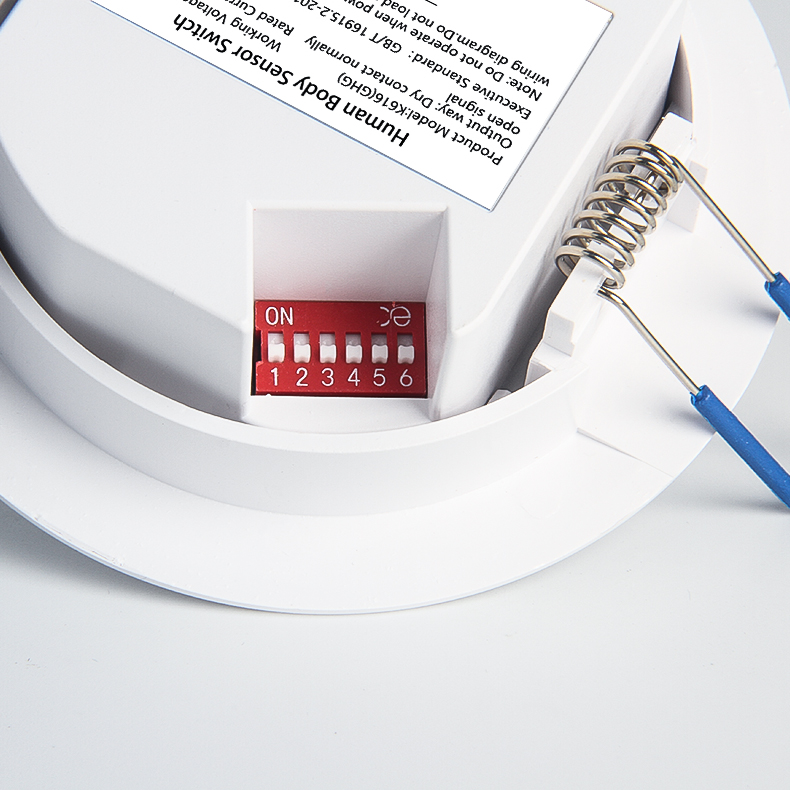

4) Detection area, hold time, and daylight threshold can be set by remote/DIP switch
5) Max detection range: 8-10m in diameter
6) 10m max mounting height
7) Warehouse, workshop, and lobby motion detection is highly recommended
2. Parameters
| Input/Output | Input voltage | 12-24V DC |
| Rated voltage | 12/24V DC | |
| Working current | 20mA max | |
| Power consumption | ≤0.5W @12/24V DC | |

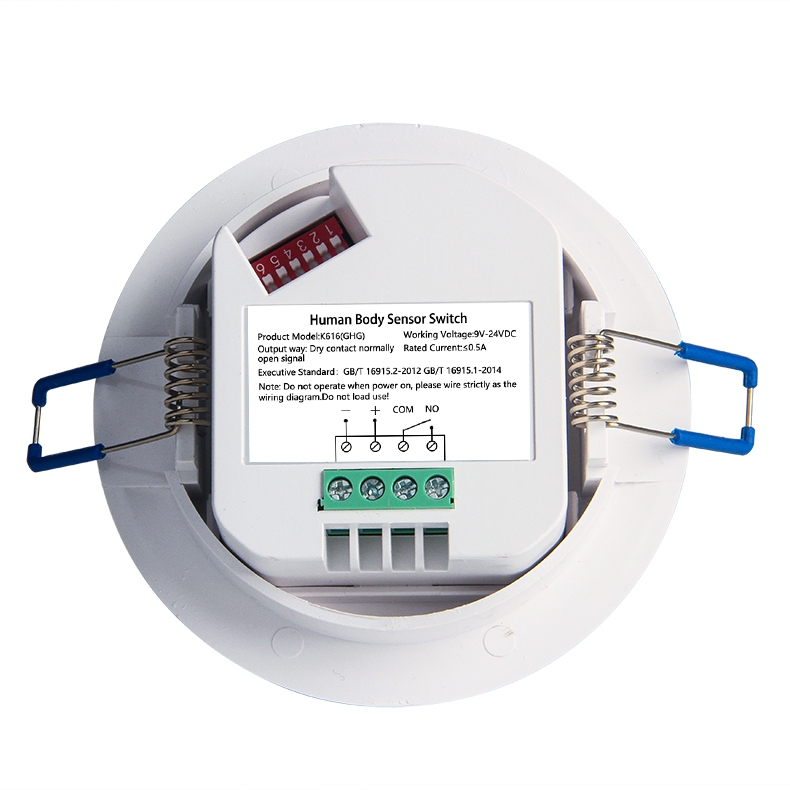

| Output signal | NO/NC dry contact (Factory setting is NO dry contact) | |
| Sensor parameter | Function | PIR motion detection+ daylight sensor |
| Detection Area | DIP or remote setting: 100%/75%/50%/25% | |
| Hold Time | DIP: 5s/1min/3min/5min/10min/20min/30min | |
| Daylight Sensor | DIP: 5Lux/50Lux/150Lux/Disable | |
| Radius detection range(based on 100% sensitivity) | 4-5m based on 10m mounting height | |
| Mounting height | typical value:8m | |
| Application environment | Drill hole | Φ65-70mm |
| Working temperature | 0℃…+35℃ | |
| Storage temperature | -40℃~+80℃ | |
| Certificate Standard | Certificate | Compliant to CE |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20 | |
| “N/A” means not available | ||
